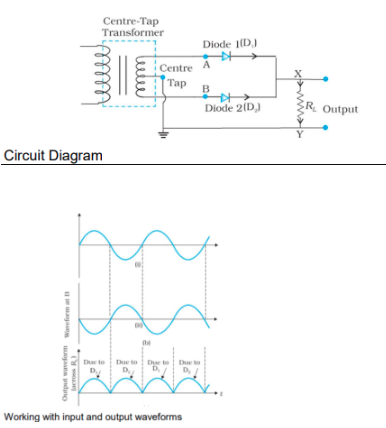

Explain with a proper diagram how an ac signal can be converted into dc ( pulsating)signal with output frequency as double than the input frequency using pn junction diode. Give its input and output waveforms.
ANS 5 A junction diode allows current to pass only when it is forward biased. So, if an alternating voltage is applied across a diode the current flows only in that part of the cycle when the diode is forward biased. This property is used to rectify alternating voltages and the circuit used for this purpose is called a rectifier.
